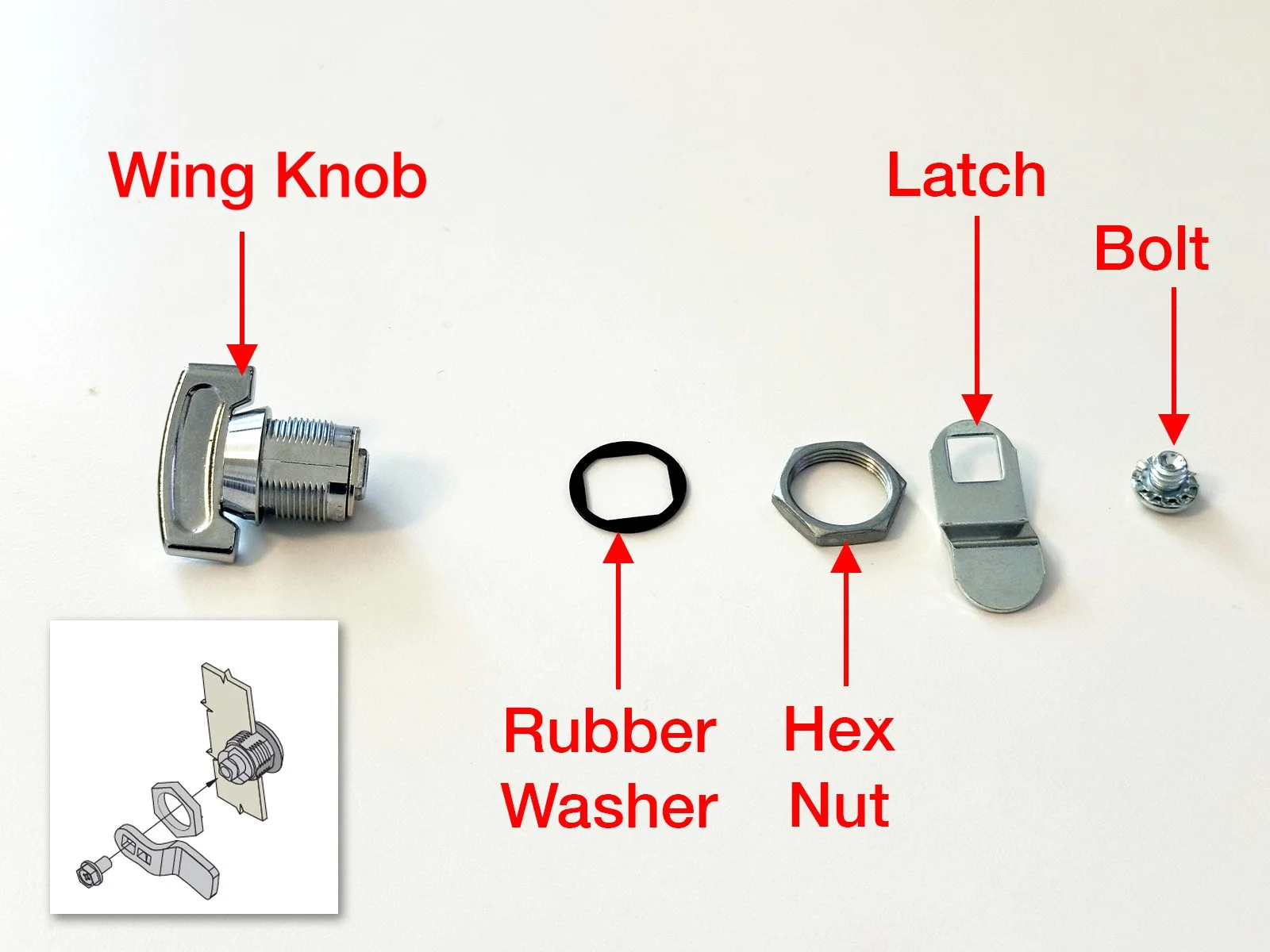

Provided: Door latch hardware kit.

Tools Required: Adjustable Pliers, Philips Screwdriver.

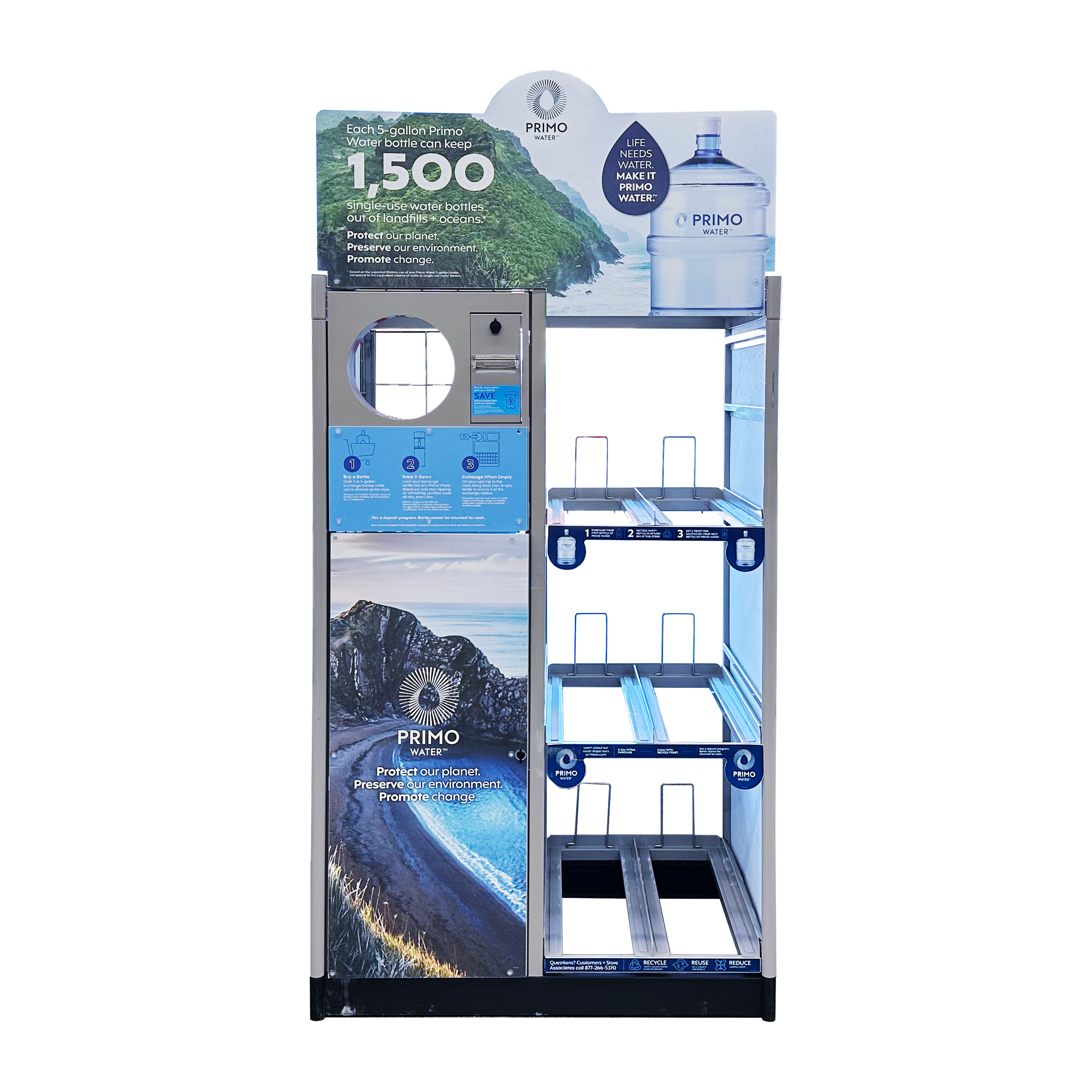

1: Find the indoor PrimoWater Combo Unit. These are usually along the interior front wall area or as an endcap to a water merchandise aisle.

2: If the Combo Unit has an existing door latch that is broken, remove it first and only install all new parts that were sent to you.

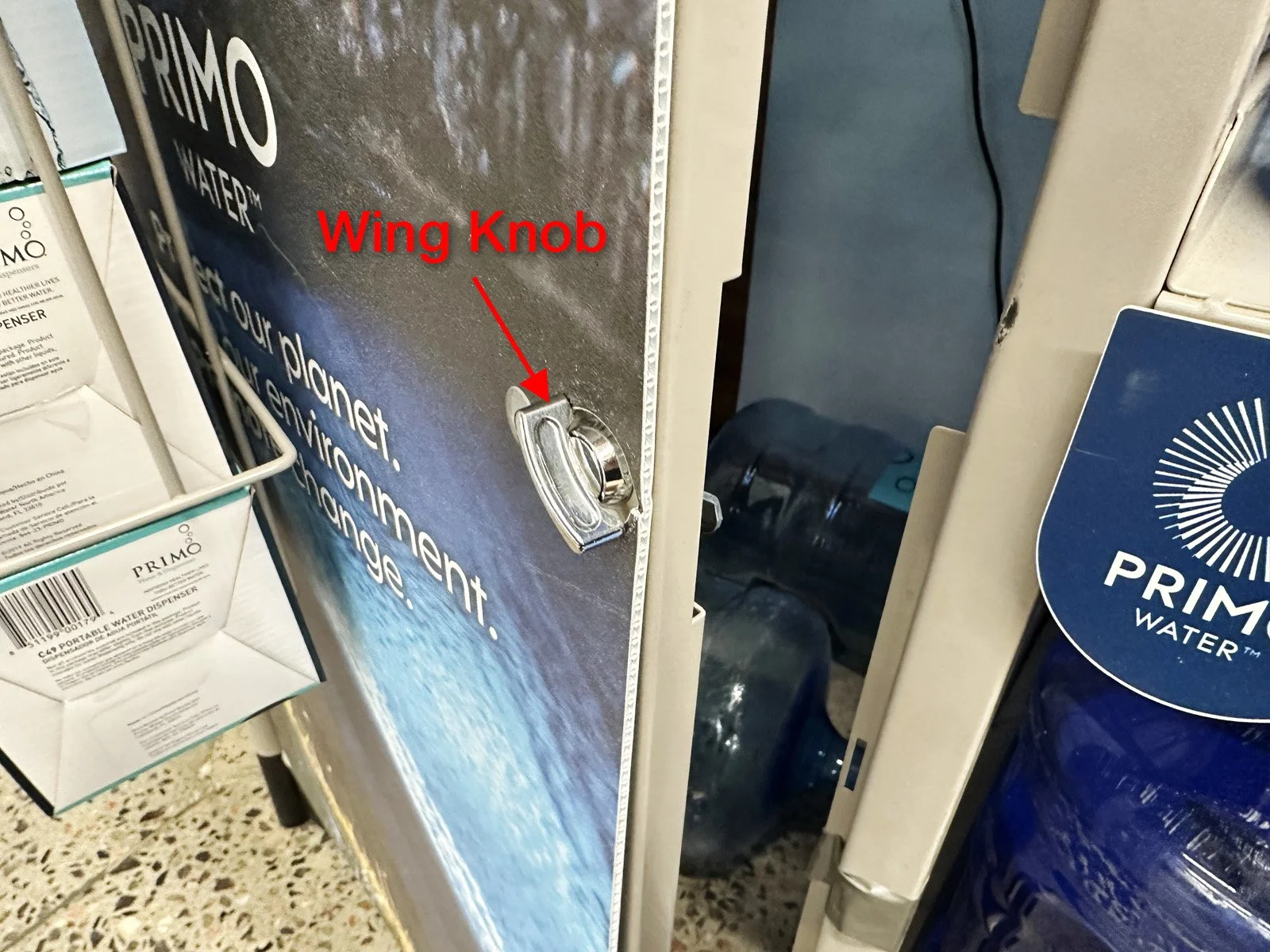

3: Insert the wing knob through the hole from the outside of the door (see photos below for diagram).

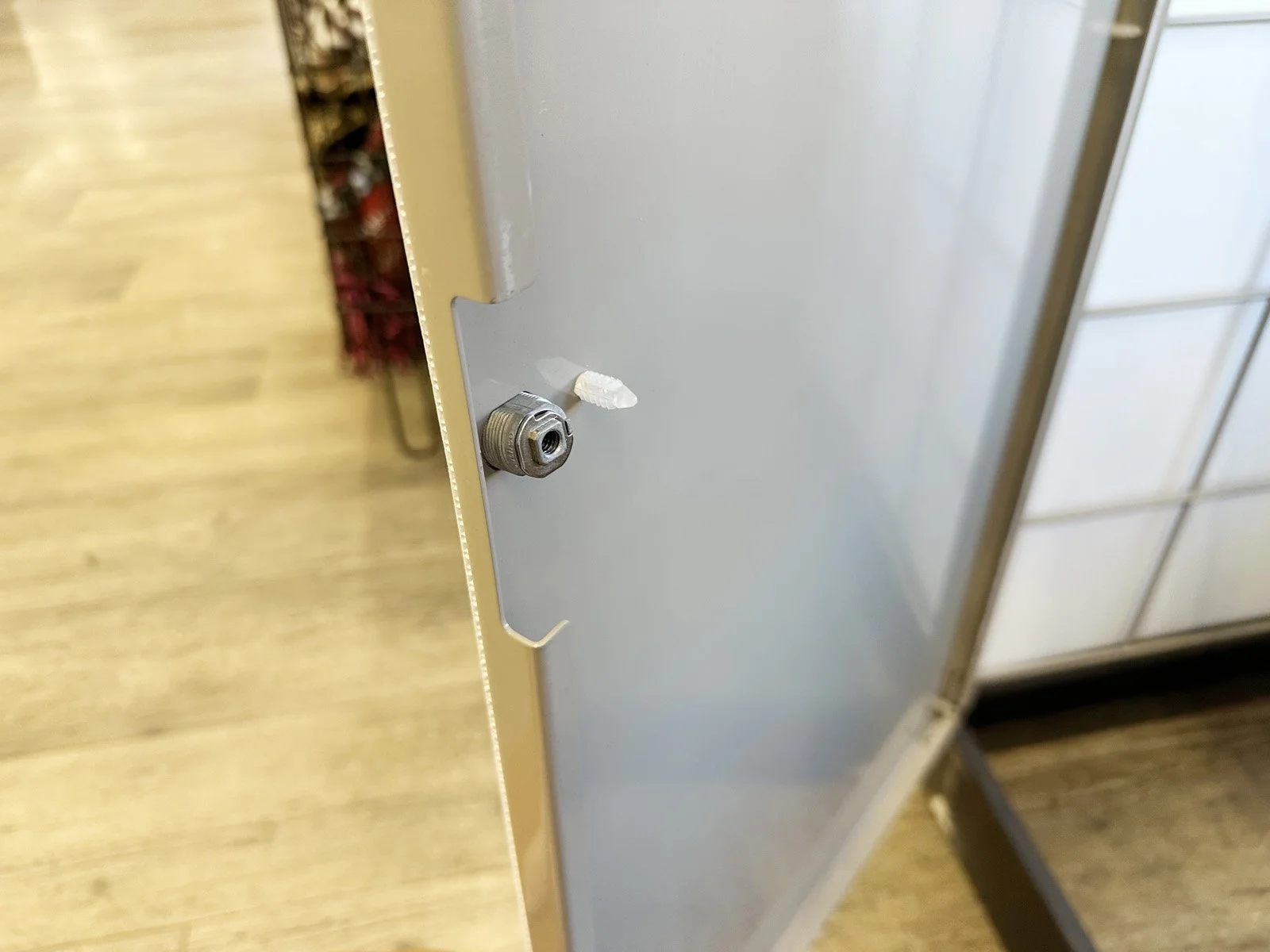

4: On the backside of the knob, first slide on the rubber washer, then screw on the hex nut. Tighten the hex nut using your pliers.

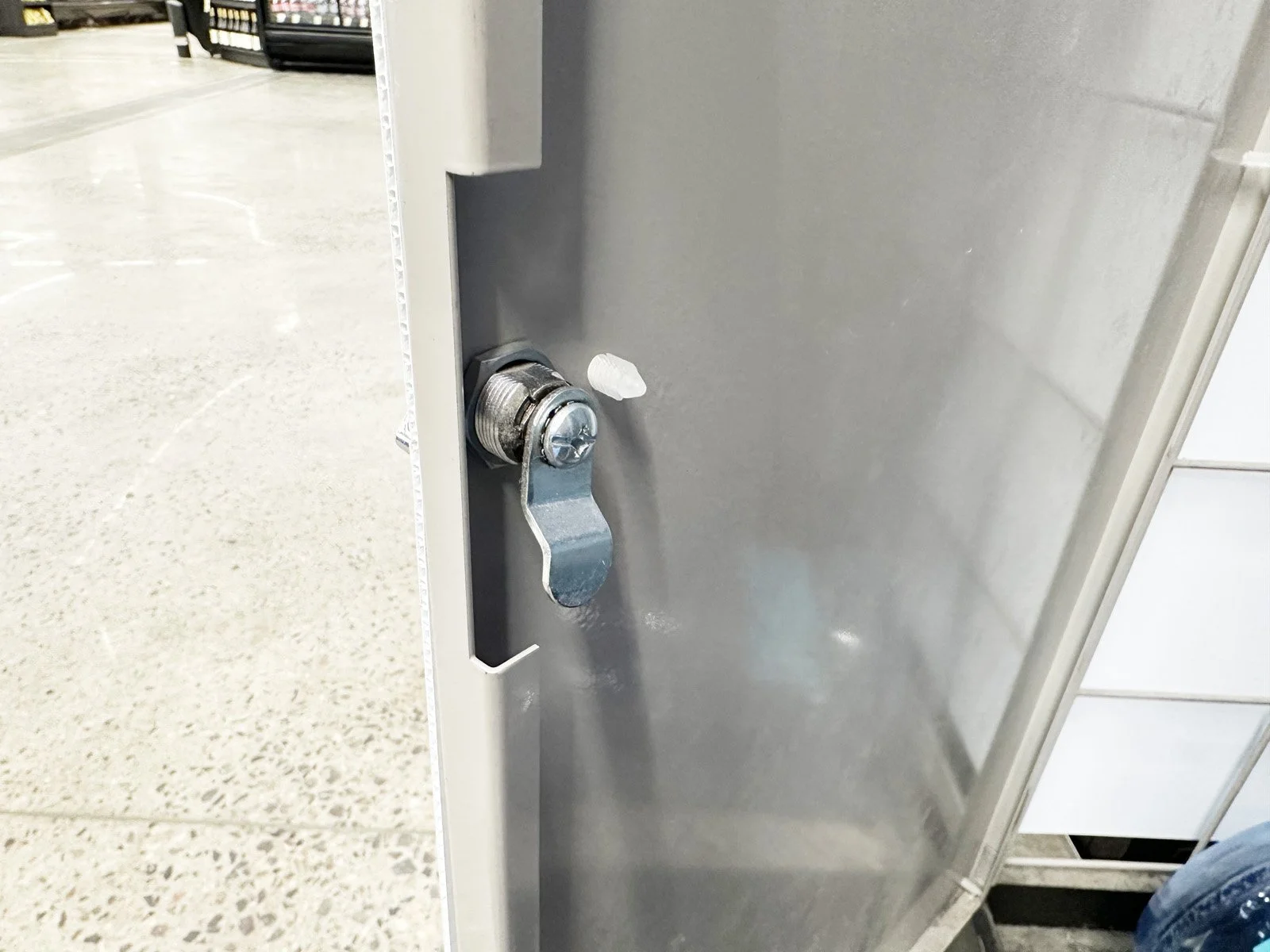

5: Place the latch onto the end of the square mount, then insert the bolt and tighten with Phillips screwdriver. Match sure the latch is aligned with the wing knob.

6: With all parts installed, check the latch to make sure it works, then close the door and latch it shut. Discard any old parts in the trash.

7. Complete your Verification Form in FastField mobile app (Apple or Android). Your username and password can be found in Field Nation under the Buyer’s Custom Fields.
